The new CRVpro family of direct drive vacuum pumps offers increased reliability and longer service interval vs. other direct drive rotary vane vacuum pumps. The CRVpro family consumes up to 36% less oil than comparable pumps. Three features drive these benefits:
Runs 10°C cooler than comparable pumps. Slows corrosion.
Has a 40% larger oil capacity than comparable pumps. Dilutes aggressive chemicals.
Has a chemical resistant coating in the oil case and pump module. Protects non-moving parts.
The CRVpro family includes all the features you'd expect in a direct drive rotary vane pump: gas ballast, forced oil lubrication, anti-suckback mechanism and thermal overload protection.
CRVpro 4,6, 8 vacuum pumps can be used for freeze drying, vacuum ovens, concentrators, glove boxes, schlenk lines, coaters, backing diffusion pumps and turbo molecular pumps, short path, wiped film, lab vacuum furnaces, lamp manufacture, space simulation, degassing, vessel/chamber evacuation. CRVpro vacuum pumps prepared with perfluoropolyether(PFPE) for oxygen service are available. Pumps with explosion proof motors are available, (click the "back to product list" link at top of page). Contact your local Welch sales representative for details on PFPE prepared pumps and for selecting correct vacuum pump for your application.

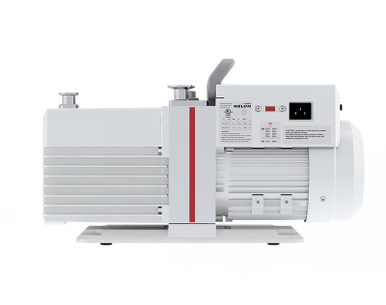

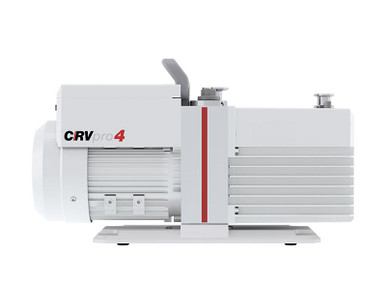

3041-01 is wired for North American 115V, 60Hz operation. Includes North American line cord, vacuum inlet hose barb suitable for gum rubber hose from 5/8" to 3/4" ID, and a charge of oil.
3042-01 is wired for North American 230V, 60Hz operation. Includes 230V North American line cord, UK cord, and skuko cord, vacuum inlet hose barb suitable for gum rubber hose from 5/8" to 3/4" ID, and a charge of oil.
3047T-01 requires installation by a certified electrician and does not include cord or plug. Includes vacuum inlet hose barb suitable for gum rubber hose from 5/8" to 3/4" ID, and a charge of oil.
Direct drive pumps are not recommended for filtration, aspiration, drying electrophoresis gels, or other applications requiring sustained operation above 30 torr.
