Barbed Orifice Restrictors







Barbed Orifice Restrictors - Series 3120


  Orifice Restrictors are designed for use in pneumatic control circuits. Available in 17 color coded sizes. The orifice and casing are precision molded of polysulfone with 10-32 UNF male threads and is available with barbs for 1/16" or 1/8" I.D. flexible tubing. (See Flow Characteristics.)

  Features:


• Maximum Supply   ... 100 PSI
• Orifice Diameters ... .003" to .040"
• Mounting ... 10-32 UNF Male Threads
• Recommended Filtration ... 5 micron
• Operating Temperature ... 40° to 120° degrees F (5° to 48° degrees C)


  Order Info:


Model
Number
Orifice
Diameter
Color
 * Port
Size		 Price
F-3120-031-B80
.003
gold
 1/16" $3.56
F-3120-031-B85 1/8"
F-3120-041-B80
.004
purple
 1/16" $1.60
F-3120-041-B85 1/8"
F-3120-050-B80
.005
lime
 1/16" $1.60
F-3120-050-B85 1/8"
F-3120-051-B80
.006
red
 1/16" $1.60
F-3120-051-B85 1/8"
F-3120-071-B80
.007
aqua
 1/16" $1.60
F-3120-071-B85 1/8"
F-3120-081-B80
.008
light green
 1/16" $1.87
F-3120-081-B85 1/8"
F-3120-091-B80
.009
lavender
 1/16" $1.87
F-3120-091-B85 1/8"
F-3120-101-B80
.010
yellow
 1/16" $1.60
F-3120-101-B85 1/8"
F-3120-121-B80
.012
black
 1/16" $1.60




Model
Number
Orifice
Diameter
Color
 * Port
Size		 Price
F-3120-121-B85
.012
black
 1/8" $1.60
F-3120-141-B80
.014
orange
 1/16" $1.87
F-3120-141-B85 1/8"
F-3120-161-B80
.016
gray
 1/16" $1.87
F-3120-161-B85 1/8"
F-3120-171-B80
.017
light brown
 1/16" $1.87
F-3120-171-B85 1/8"
F-3120-191-B80
.019
light
red
 1/16" $1.87
F-3120-191-B85 1/8"
F-3120-201-B80
.020
blue
 1/16" $1.60
F-3120-201-B85 1/8"
F-3120-251-B80
.025
brown
 1/16" $1.60
F-3120-251-B85 1/8"
F-3120-301-B80
.030
beige
 1/16" $1.60
F-3120-301-B85 1/8"
F-3120-401-B80
.040
red-brown
 1/16" $1.60
F-3120-401-B85 1/8"



* Refers to Barb Size I.D. Tubing Connection

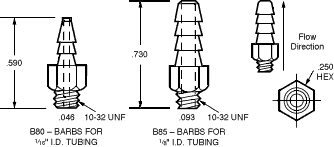

  Dimensions:


Barbed Restrictor Dimensions
