The SV series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. By connecting each block with a connector, changes to manifold stations are greatly simplified. Cassette base type manifolds offer the ultimate in flexibility. Manifold sections can be added using a simple release mechanism. Conventional tie-rod base type manifolds are also available. The use of 34 pin connectors allows up to 16 stations with double solenoids.

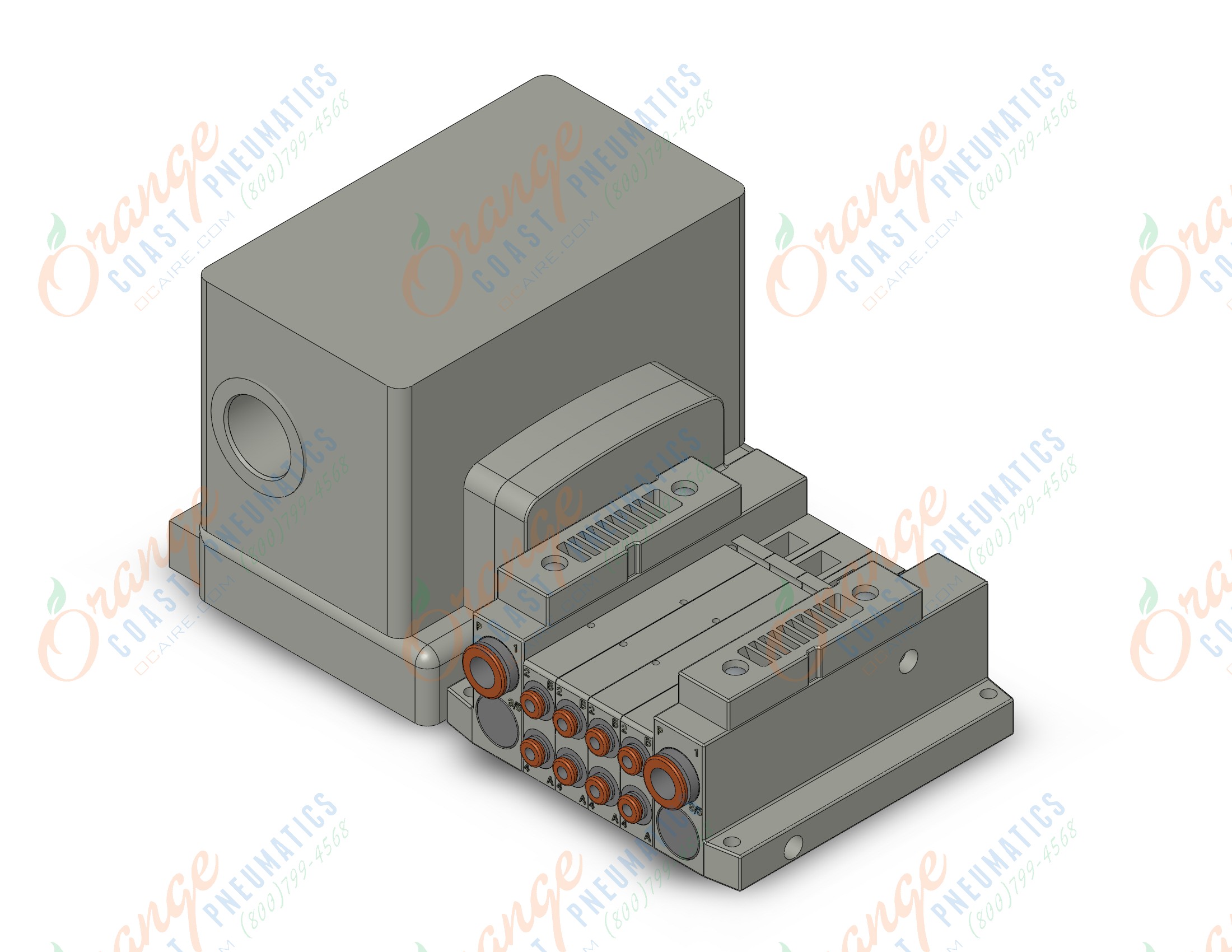

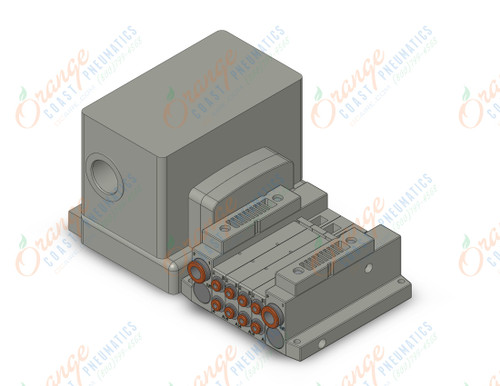

- Tie rod base manifold (for EX126)
- Applicable valves: SV1000, SV2000, SV3000
- 16 point output (NPN)
- Conforms to CE marking
- IP67 enclosure
