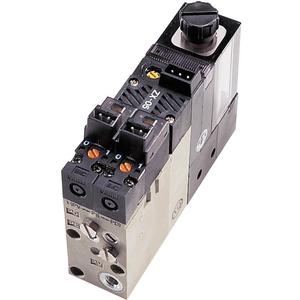

Series image - for reference only

Part Builder Close Match Items CAD Drawings Email Item Add to Formal Quote Series Catalog Ordering Guide
Normal View Purchasing View
         -

SMC ZX1102-K15LZ-EC vacuum module, ejector (dc), ZX MODULAR VACUUM SYSTEM

$22475
  • Available to Ship Today*:
  • Available to Ship Tomorrow*:
  • Available to Ship in 5 Days*
  • Available to Ship in 7 Days*:

Please call 800-799-4568 or email to confirm availability.

Part #: ZX1102-K15LZ-EC
Series Catalog

Description

The ZX is a single-stage vacuum generator. The modular design allows the user to choose only the components needed for the application. The ZX is available with a combination of generator unit, supply/release valve unit, pressure switch unit, and suction filter unit. Order without the generator unit for use as a filter and valve assembly for house vacuum systems. Special function plates allow the use of shop air to create the vacuum, and nitrogen for the blow-off. Available in standalone or manifold configurations.

  • Vacuum module, ejector system
  • Nozzle diameters: .5mm, .7mm, 1mm
  • Various valve types
  • Air operated or various voltages
  • Various lead wire and connector types
  • Various switches and lead wire lengths

Downloads

CAD Downloads

CAD Files from ETECH

View CAD Models

View 3D Model
Price: $224.75
Close match in stock Inventory
Some out of stock items can be obtained in 1 to 6 weeks. Contact us for more information
