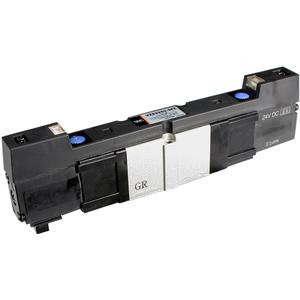

The VZS series is a 5 port pilot solenoid, base mounted type valve, available in a plug-in or non plug-in style. The metal seal makes it possible for use in non-lubrication and dry air. Manifold options include control unit, serial interface unit and a coaxial fitting.
- Fluid: ? air
- Operating pressure range: ? 0.1MPa ? 1.0MPa
- Effective area mm 2 (Cv): 5.4 ? 13.2 (0.3 ? 0.73)
- Coil rated voltage: ? 6, 12, 48VDC; 24, 48, 110, 220VAC
- Protection structure: ? dust proof
(protection class 0 based on JIS C0920) - Ambient and fluid temperature: -10 to 50 C
