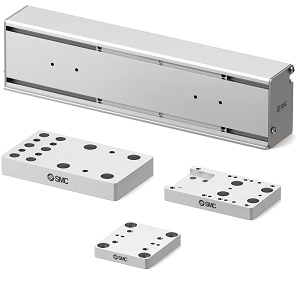

Mounting Kits for Multi-Axis Systems

These mounting kits allow engineers to take individual electric actuators and bolt them together to create complex robotic motion systems like 2-axis or 3-axis gantries. The core of this line is modularity and speed of assembly. The kits include mounting plates, brackets, and all necessary fasteners compatible with specific SMC actuator series. We provide multi-axis calculation software specifically for this line, which helps users select the right kit based on the weight of the load and the speed required, ensuring the brackets won't flex or fail under stress.

LEA Cable Carrier Mounting Bracket

The LEA Cable Carrier Mounting Bracket is a specialized accessory designed to facilitate the secure attachment of cable carriers to our multi-axis electric actuator systems. Available in kits of one, two, or three brackets depending on the number of axes in the system, these components are essential for organized cable management. By providing a dedicated mounting point for each axis, the brackets prevent cable strain and entanglement during high-speed movements, ensuring the long-term reliability and safety of the electrical connections and pneumatic tubing within the automated system.

LEA X-Y-Z Axis Gantry with Support Guide

The LEA X-Y-Z Axis Gantry with support guide kit is designed for heavy-duty multi-axis operations that require superior rigidity and stability. It includes three mounting plates, two boom profiles, and an undriven support guide that runs parallel to the X-axis to provide additional structural reinforcement. By distributing the mechanical load across the support guide, this configuration increases the system's load capacity and minimizes vibration, making it the ideal solution for large-scale gantry systems or applications involving heavy payloads and high-stability requirements.

LEA Y-Z Axis Line Gantry Kits

The LEA Y-Z Axis Line Gantry Kit provides a streamlined solution for creating two-axis linear configurations, specifically pairing Y-axis sliders (such as the LEFS or LEFB series) with Z-axis guided rods (LEYG series). This kit is composed of one or two mounting plates, depending on the actuator size, along with the required hardware for assembly. Designed for simplicity and compactness, this line gantry setup is best suited for straightforward vertical and horizontal movements where additional structural rigidity from a third axis or support guide is not necessary, offering a cost-effective and efficient automation solution.

Mounting Kits for Multi-Axis Systems

LEA Cable Carrier Mounting Bracket

LEA X-Y-Z Axis Gantry with Support Guide

LEA Y-Z Axis Line Gantry Kits
