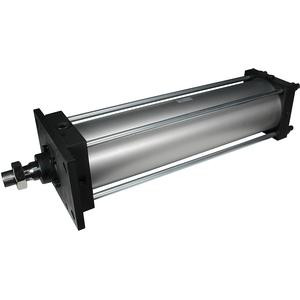

Series image - for reference only

Part Builder Close Match Items CAD Drawings Email Item Add to Formal Quote Series Catalog Ordering Guide
Normal View Purchasing View
         -

SMC C1S180-03-46829-R head cover assy, CS1/CS2 TIE ROD CYLINDER

$154.50
  • Available to Ship Today*:
  • Available to Ship Tomorrow*:
  • Available to Ship in 5 Days*
  • Available to Ship in 7 Days*:

Please call 800-799-4568 or email to confirm availability.

Part #: C1S180-03-46829-R
Series Catalog

Description

Series CS1 air cylinder is SMCs largest bore cylinder. This series is available in bore sizes up to 12in. and stroke lengths up to 60in.. Additionally, the CS1 can be ordered auto-switch capable. Other options include, large bore sizes up to 12in. *, various mounting configurations, cushion for noise damping.

  • Double acting, single rod, lube type
  • Bore sizes: 125mm to 300mm
  • Strokes up to 2400mm available
  • Seven mounting styles available
  • Auto switch capable
