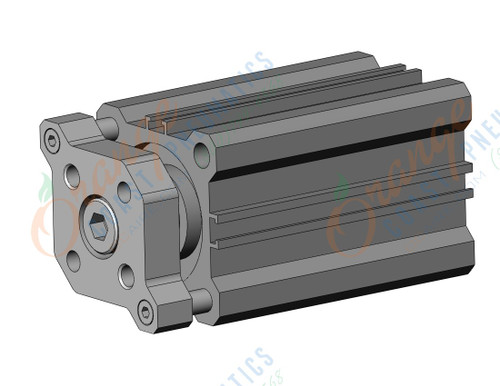

SMC CDQMA32-40 cyl, compact, auto-switch, CQM COMPACT GUIDE ROD CYLINDER

The CQM is a compact cylinder integrated with a guide rod and plate. The series is available in 12, 16, 20, 25, 32, 40, 50, 63, 80, and 100mm bore sizes. Non-rotating accuracy is 0.2 or less. Series CQM allows a workpiece to be mounted directly to the tooling plate. Auto switches are mountable/removable even when the plate is retracted.

• Guide rod type compact cylinder
• Bore sizes *: 12, 16, 20, 25, 32, 40, 50, 63, 80, and 100
• Standard strokes *: 5 to 100
• 4 times the lateral load resistance of the CQ2K
• Non-rotating accuracy 0.2 or less
