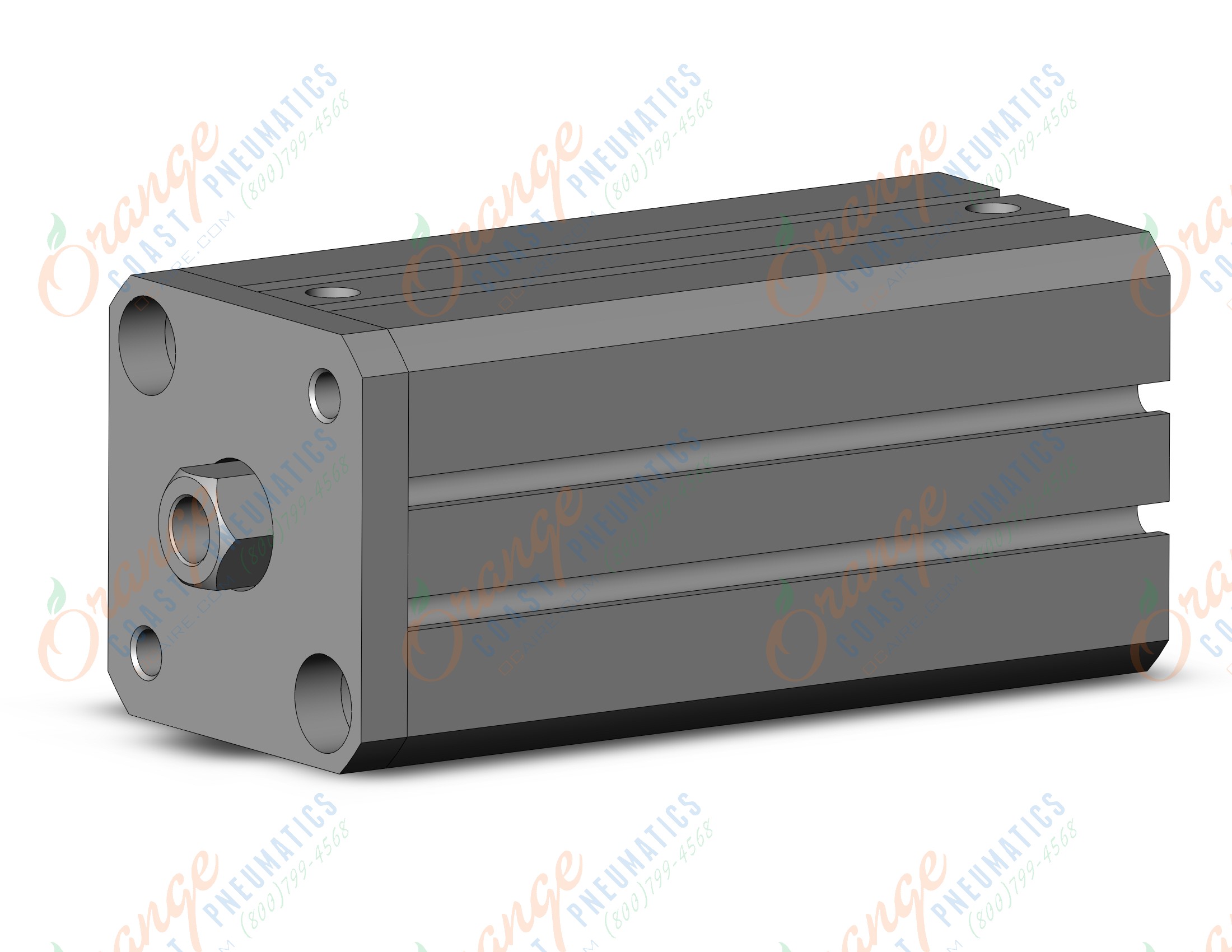

SMC CDQSKB25-50D cyl, compact, non rot, auto-sw, CQS COMPACT CYLINDER

The CQS compact cylinder is available for those small bore cylinder applications where saving space is a concern. The CQS offers standard long strokes * in four bore sizes from 12 to 25mm. Long stroke versions incorporate a wear band and thicker piston to handle the increased bearing needs of the longer strokes. Both switch capable and non-switch capable body styles are the same, and switches can be mounted on three * and four * sides. An increased side load version * is available for more demanding applications.

• Non-rotating rod
• Bore sizes in mm: 12, 16, 20, 25
• Strokes: 5mm through 50mm depending upon bore size
• Mounts: through hole, both ends tapped, foot, front or rear flanges, double clevis
• Variety of switches and a variety of lead wire lengths
