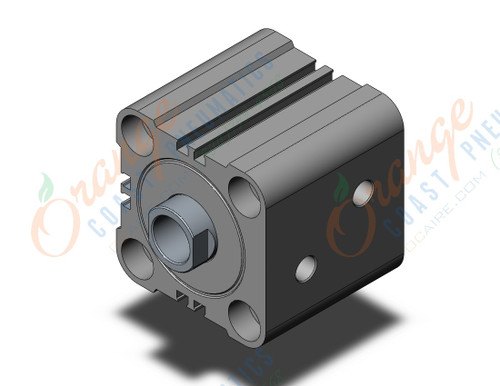

SMC CHDKDB50-15-M9NVSAPC compact high pressure hydraulic cylinder, HYDRAULIC CYLINDER, CH, CC, HC

CH series hydraulic cylinders are available in compact, round body, JIS or tie-rod types. Nominal pressure ranges from 3.5MPa to 16MPa. Bore sizes are available, depending on the series, from 20 to 160. Auto switches are available on most models.

• JIS standard compact hydraulic cylinder
• Nominal pressure: 10MPa
• Bore sizes: 20~25
• Mounting: basic type
• Auto switch capable
