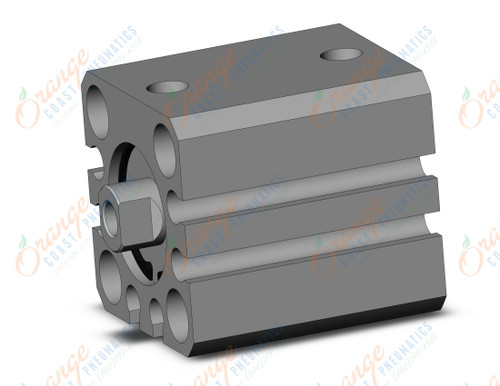

SMC CQSXB16-15D cyl, microspeed, dbl acting, COMPACT CYLINDER

The CQS compact cylinder is available for those small bore cylinder applications where saving space is a concern. The CQS offers standard long strokes * in four bore sizes from 12 to 25mm. Long stroke versions incorporate a wear band and thicker piston to handle the increased bearing needs of the longer strokes. Both switch capable and non-switch capable body styles are the same, and switches can be mounted on three * and four * sides. An increased side load version * is available for more demanding applications.

• CQS, low friction type
• Mountings: basic, foot, front and rear flange, double clevis
• Bore sizes: 12, 16, 20, 25mm
• Strokes up to 50mm
• Auto switch capable
