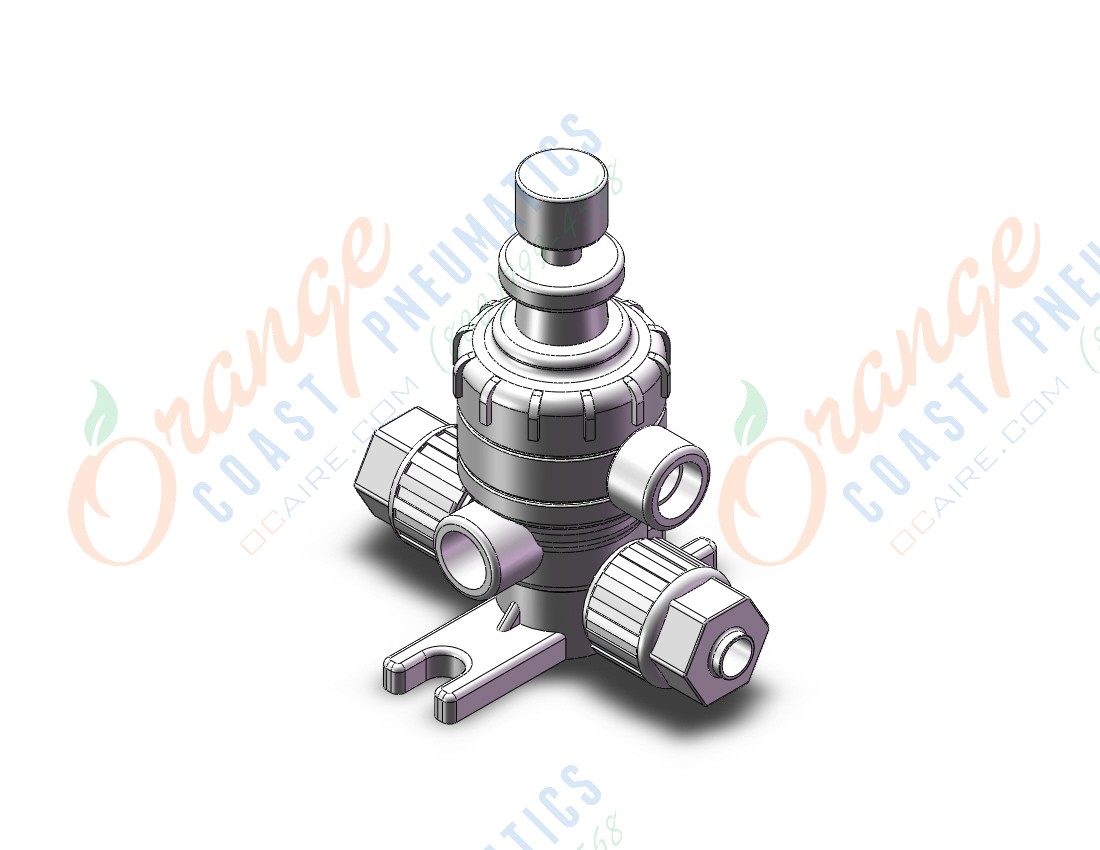

SMC LVQ20-Z06R-1 viper valve, LVQ VIPER VALVE

Series LVQ is a 2 port chemical valve with a non-metallic exterior. A high density PVDF housing offers increased chemical resistance and the special diaphragm construction insures gentle opening and closing preventing the formation of micro-bubbles. The LVQ guide ring eliminates lateral motion of the poppet, which reduces internal leakage.

• 2 port chemical valve
• Non-metallic exterior
• LQ3 integral fitting
• Tube O.D.: 1/4", 3/8", 1/2", 3/4", 1", 3, 4, 6, 8, 10, 12, 19, 25
• Orifice: 4, 8, 10, 16, 22
• Cv factor: .35 to 8.0
