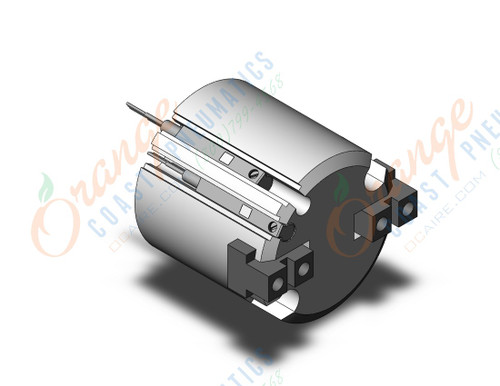

SMC MHS2-20D-M9PSAPC mhs, parrallel style air gripper, GRIPPER

The MHS is the latest in the family of rotary operated parallel style grippers. This compact gripper is available in 10 different bore sizes with choices of 2, 3 and 4 fingers which generate gripping forces up to 1270 N. Pinholes are incorporated as standard, facilitating accurate mounting which is achieved through either body tapped or through-hole mounting. By using a wedge cam construction to attach the fingers to the rotary actuator a more compact design is achieved, as well as high repeatability of 0.01 mm. Auto switches can be simply attached via the standard built-in grooves

• 2 finger parallel style air gripper
• Two fingers
• Bore sizes: 16, 20, 30, 32, 40, 50, 63 *
• Thirteen different switches in .5mm or 3mm lead wire lengths
