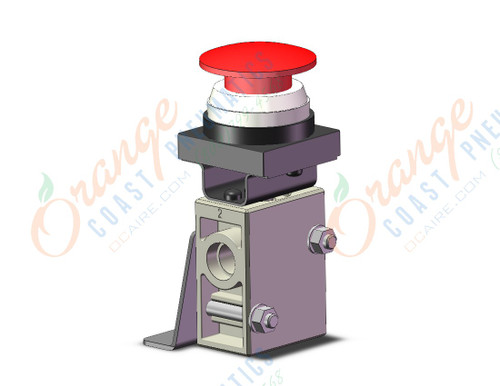

SMC VM220-N02-30RA-B 2/3 port mechanical valve, MECHANICAL VALVE

The VM series is a mechanical, poppet valve. Their compact size requires little mounting space. The VM series offers a wide variety of actuator styles and flow capacity up to 1.0 Cv.

• Fluid: air
• Operating pressure: 0 to 1.0MPa
• Effective area (Cv): 19mm ² (1.0)
• Fluid temperature: -5° to 60°C (no freezing)
• Port size (nominal size): Rc(PT) 1/4 (8A)
